Container/Heavy-Duty Pallet Truck (Model: GTL-0158):

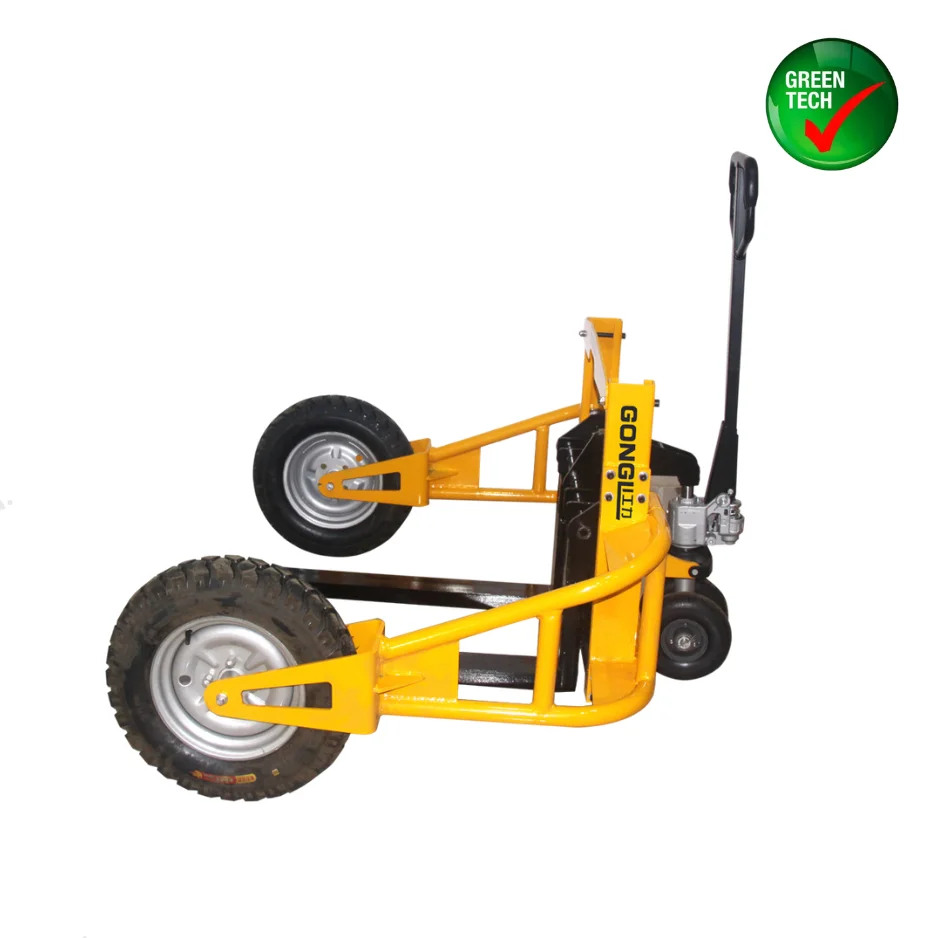

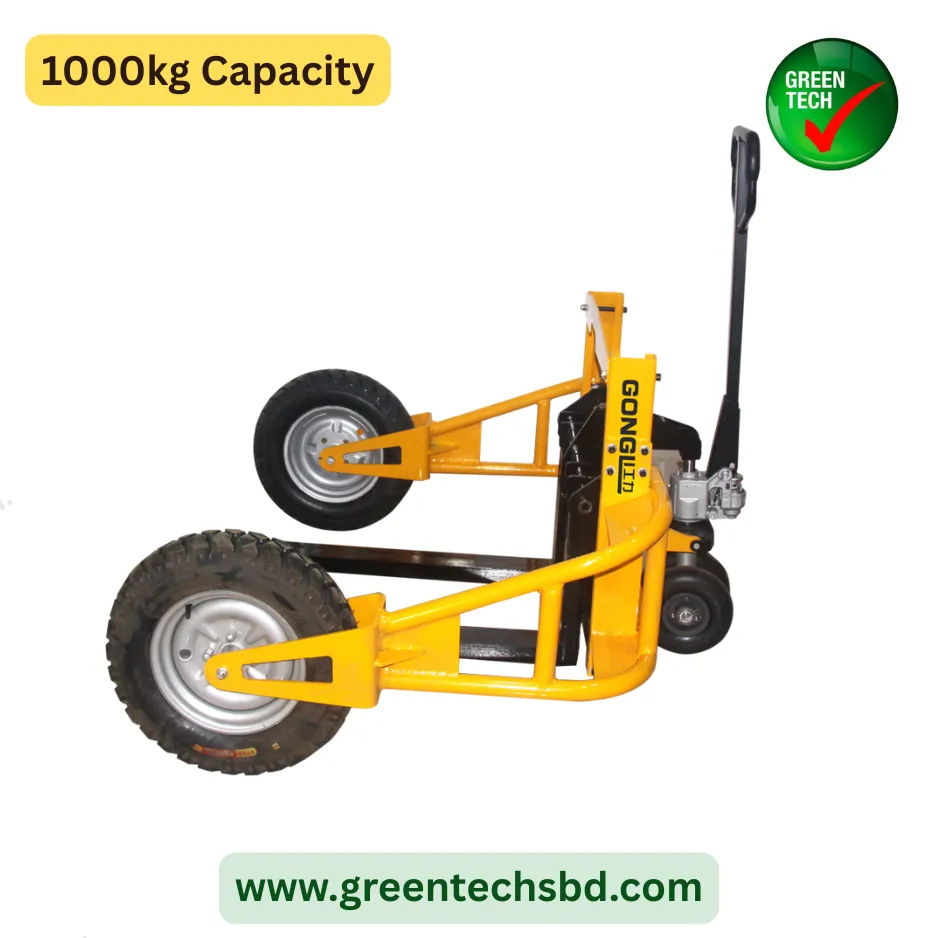

Container Pallet Truck – GTL-0158 Technical Specifications
📋 Core Parameters
| Feature | Specification |
|---|---|
| Model Number | GTL-0158 |
| Load Capacity | 1000 kg |
| Chassis Dimensions | |
| – Front Wheel Track | 1250 mm (inner distance) |
| Fork System | |
| – Length Options | 950 mm / 1100 mm |
| – Adjustable Width | 240-680 mm (continuously adjustable) |
| – Arm Thickness | 100 mm |
| Lifting Performance | |
| – Min. Height | 80 mm |
| – Max. Height | 200 mm |
| Wheel Configuration | |
| – Front Wheels | Φ450×120 mm (Polyurethane) |
| – Rear Wheels | Φ250×80 mm |
| Physical Parameters | |
| – Net Weight | 182 kg |
| – Packaging Dimensions | 1040×740×760 mm |
⚙️ Technical Notes
- Gradeability: 5% with full load
- Steering System: Precision ball-bearing mechanism
- Surface Treatment: Anti-corrosion paint for harsh environments
🆚 Competitive Advantages
| Feature | GTL-0158 | Standard Pallet Truck |
|---|---|---|
| Fork Width | 240-680mm adjustable | Fixed 550/685mm |
| Wheel Size | Φ450mm (front) | Typically Φ180-200mm |
| Stability | 1250mm wheelbase | Narrower base (~800mm) |
