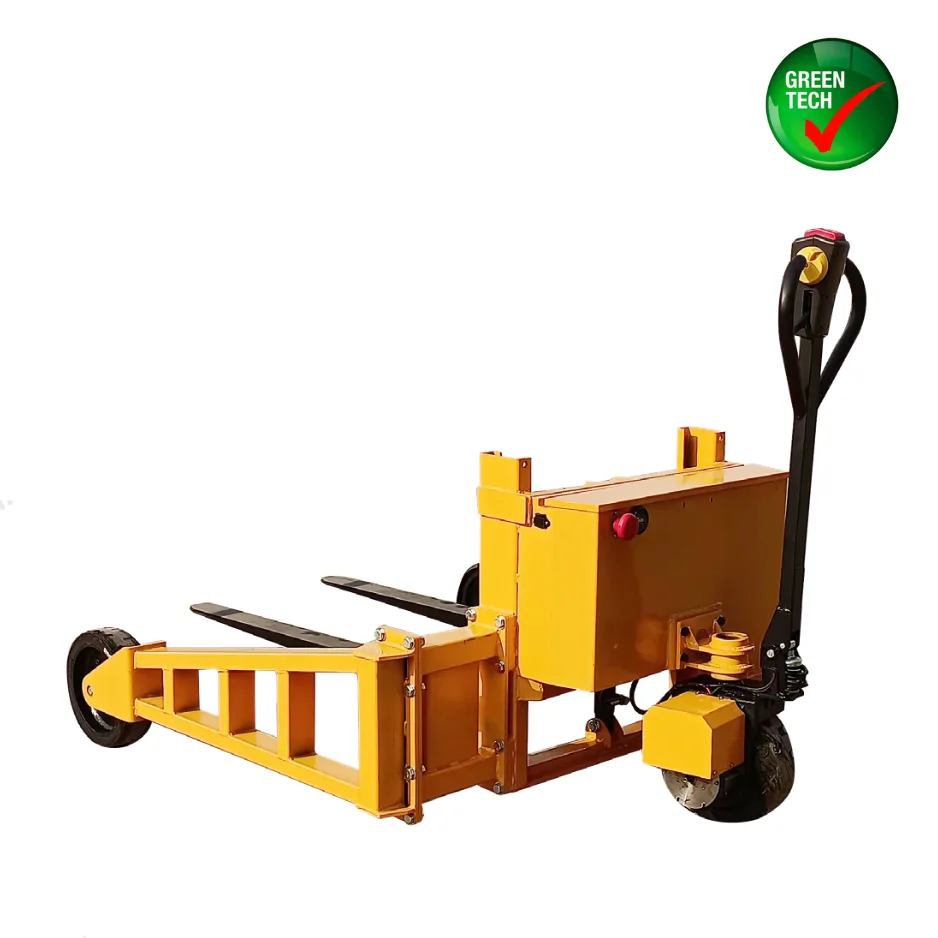

Electric Rough Terrain Pallet Truck - 1500kg | 48V System
Electric Rough Terrain Pallet Truck - 1500kg | 48V System - Image 2
Electric Rough Terrain Pallet Truck - 1500kg | 48V System - Image 3
,

Electric Rough Terrain Pallet Truck – 1500kg | 48V System

Full Electric Rough Terrain Pallet Truck is engineered for heavy-duty outdoor material handling with its 1500kg capacity and all-terrain Ø300mm wheels. The 1.1kW electric motor delivers powerful performance on challenging surfaces, while the 48V/32Ah battery ensures extended operation. Its 1200mm forks and 1250mm inner leg width provide exceptional stability for large loads, making it ideal for construction sites, lumber yards, and agricultural applications.

Categories: ,

Full Electric Rough Terrain Pallet Truck



 Technical Specifications

Parameter Specification
Model Number GTL-0166
Load Capacity 1500 kg
Lifting Height Range 50-200 mm
Motor Power 1.1 kW (48V)
Battery System 48V/32Ah Lithium
Wheel Configuration
– Front Wheels Ø300×80 mm
– Rear Drive Wheels Ø300×80 mm
Chassis Dimensions
– Inner Leg Width 1250 mm
– Outer Leg Width 1480 mm
Fork Length 1200 mm
Physical Parameters
– Overall Dimensions 1860×1480×1100 mm (L×W×H)
– Net Weight 313 kg
Charger 48V/5A Smart Charger

Performance Data

  • Travel Speed: Up to 5 km/h (unloaded)
  • Gradeability: 10% with full load
  • Operating Time: 8-10 hours normal use
  • Charging Time: 6-8 hours (0-100%)

🆚 Competitive Advantage

Feature GTL-0166 Standard Models
Load Capacity 1500 kg Typically 800-1000kg
Wheel Size Ø300mm (all-terrain) ≤200mm (indoor use)
Stability 1250mm leg width 800-1000mm width
