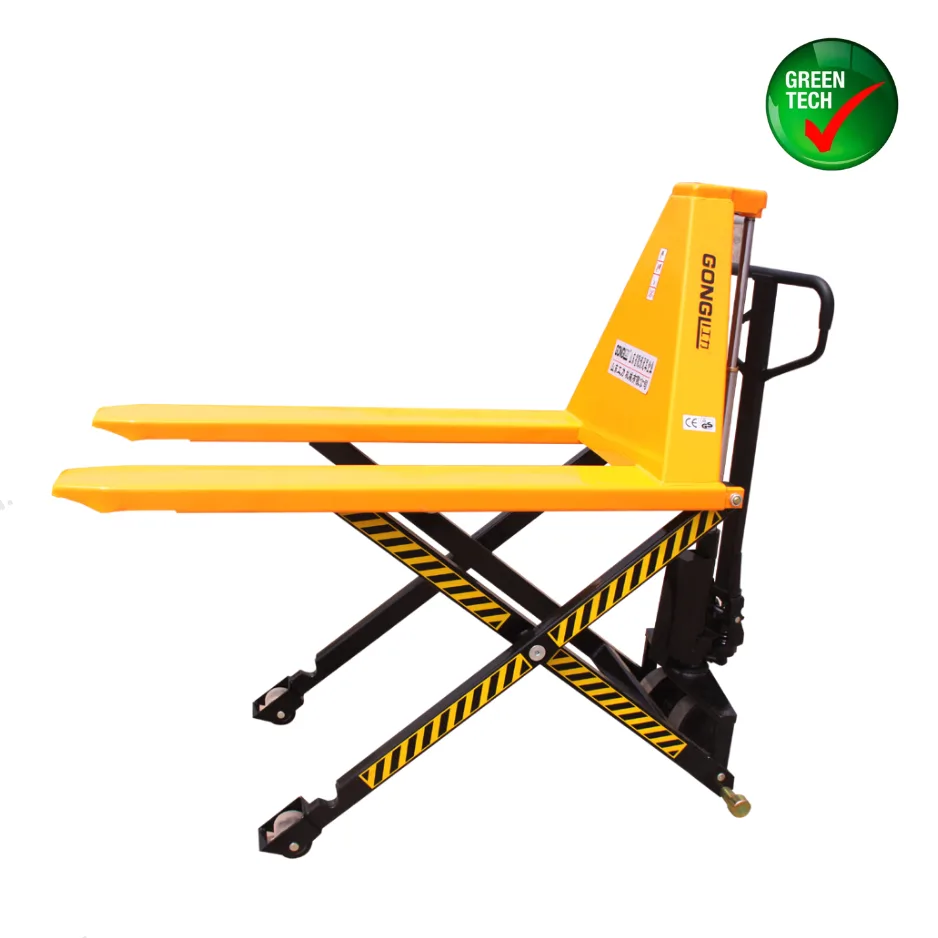

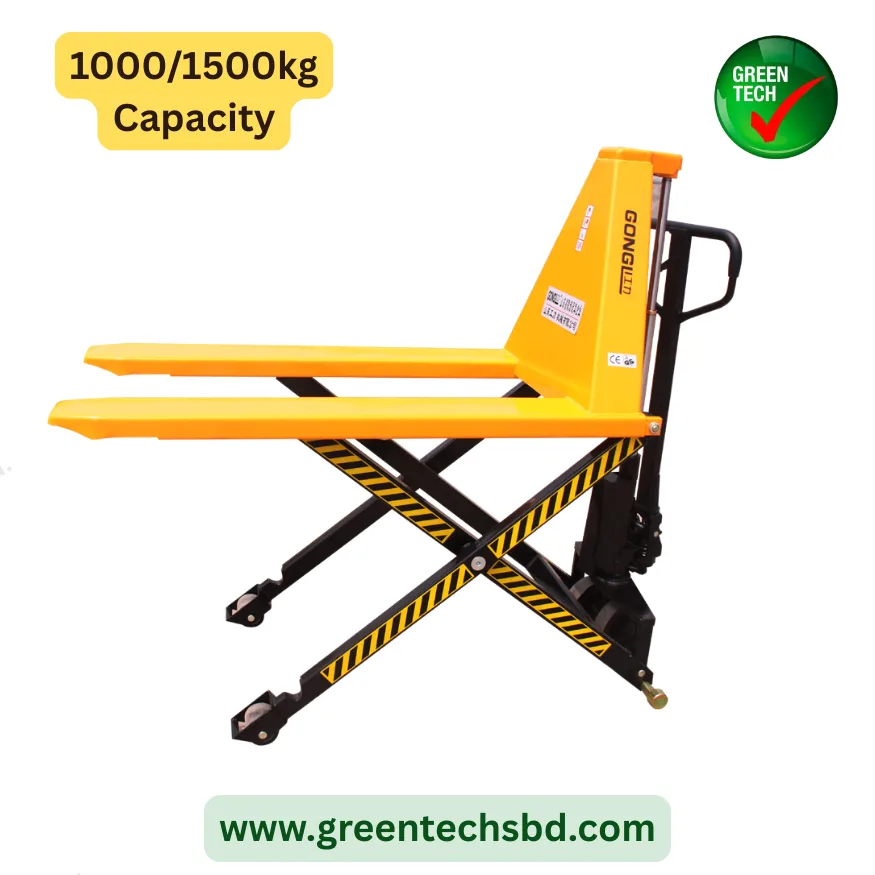

High Lift Pallet Truck – GTL-0160
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | GTL-0160 |
| Load Capacity | 1000 kg / 1500 kg (dual option) |
| Fork Dimensions | |
| – Outer Width | 540 mm / 680 mm (adjustable) |
| – Thickness | 160 mm / 50 mm |
| – Length | 1150 mm |
| Lifting Range | |
| – Minimum Height | 85 mm |
| – Maximum Height | 800 mm |
| Wheel Configuration | |
| – Load Wheels | Nylon/Polyurethane options |
| – Steering Wheel | Nylon/Polyurethane options |
| Physical Parameters | |
| – Net Weight | 125-135 kg |
Technical Notes
- Lifting Mechanism: Manual hydraulic pump
- Wheel Options:
- Nylon: Standard durability
- Polyurethane: Non-marking & quiet operation
- Stability: Low center of gravity design
🆚 Competitive Advantage
| Feature | GTL-0160 | Standard Pallet Trucks |
|---|---|---|
| Lift Height | 800 mm (work platform height) | Typically ≤200 mm |
| Versatility | Transporter + work platform | Transport-only function |
| Load Capacity | Up to 1500 kg | Usually ≤1000 kg |
