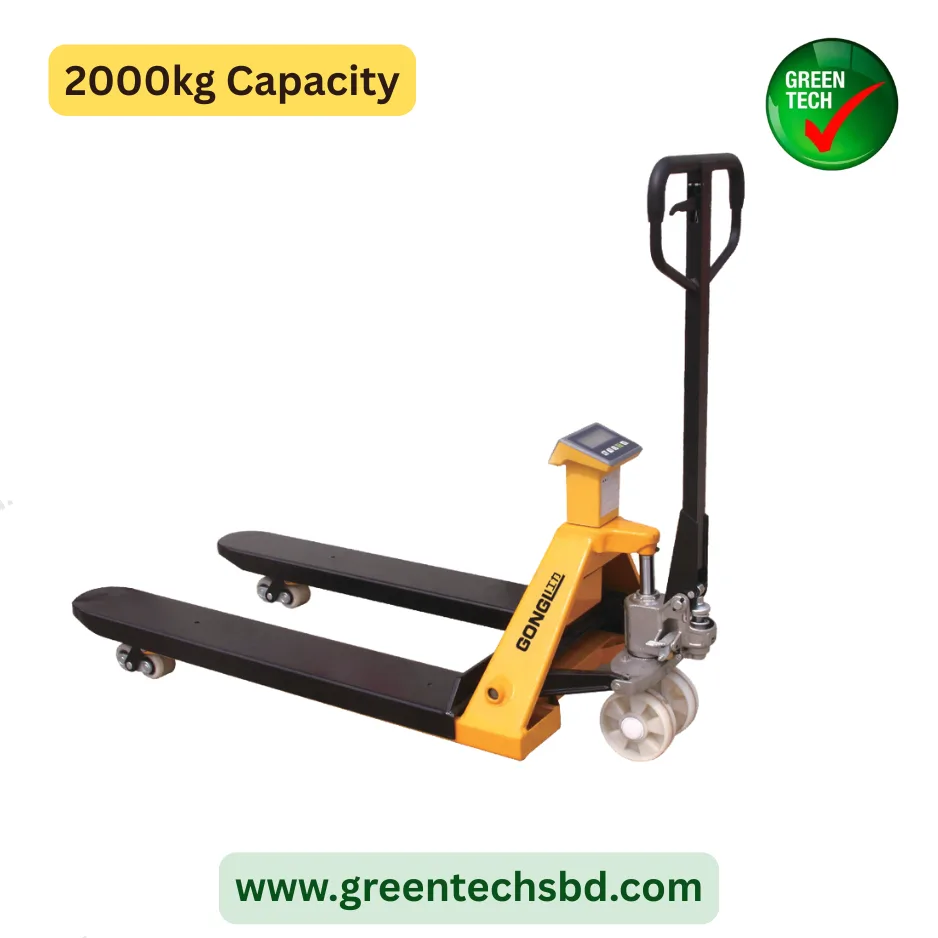

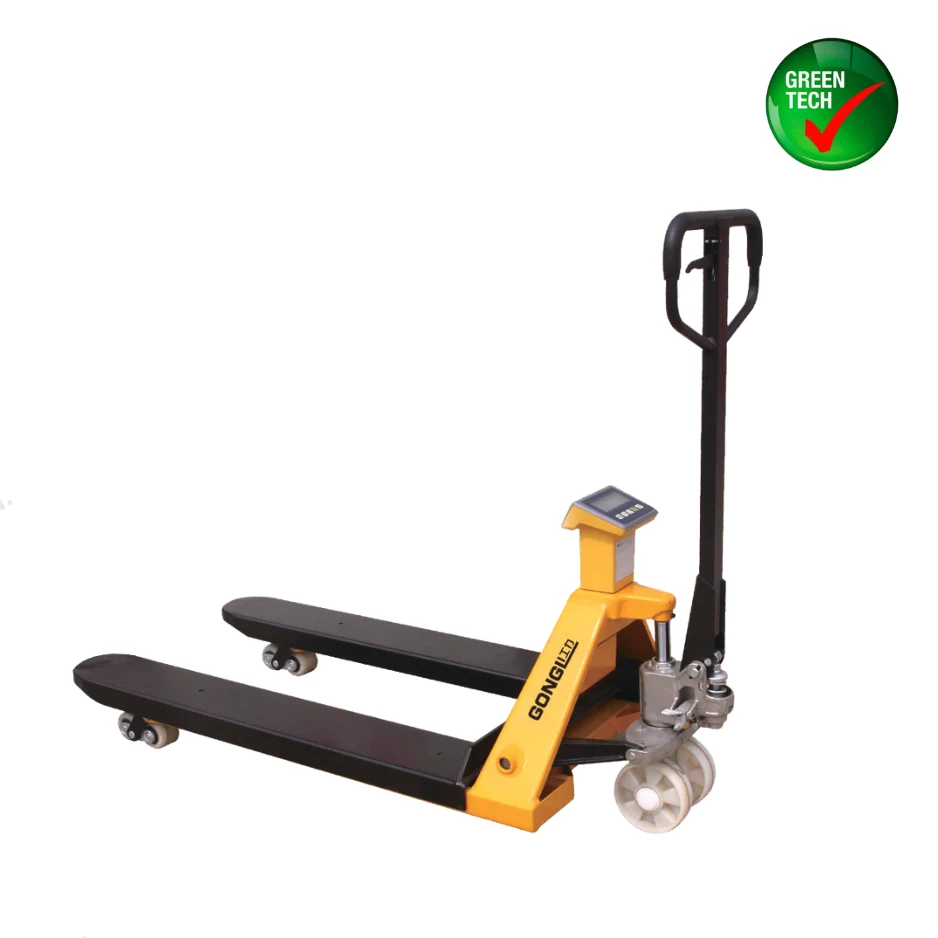

Pallet Truck with Scale (Model: GTL-0156):
Pallet Truck with Scale – GTL-0156 Technical Specifications
📋 Core Parameters
| Feature | Specification |
|---|---|
| Model Number | GTL-0156 |
| Load Capacity | 2000 kg |
| Fork Dimensions | |
| – Outer Width (Adjustable) | 550 mm / 685 mm |
| – Fork Thickness | 160 mm |
| – Fork Length | 1150 mm |
| Lifting Range | 85 mm (min) – 195 mm (max) |
| Wheel Configuration | |
| – Bearing Wheels | Φ80×70 mm (Nylon) |
| – Steering Wheel | Φ180×50 mm (Nylon) |
| Scale System | |
| – Weighing Capacity | 2000 kg |
| – Accuracy | ±0.1-0.5% FS |
| – Display | LCD with backlight |
| – Power | Rechargeable battery (24+ hours) |
Technical Notes
- Scale Calibration: Factory pre-calibrated, user-recalibratable
- Battery Life: 24+ hours continuous use per charge
- Environmental Rating: IP54 (splash/dust resistant)
🆚 Value Proposition
| Feature | GL-0156 (With Scale) | Standard Pallet Truck |
|---|---|---|
| Functionality | Weigh while moving | Transport only |
| Efficiency | Eliminates separate weighing steps | Requires scale station |
| Data Recording | Optional Bluetooth data export | Manual recording needed |
