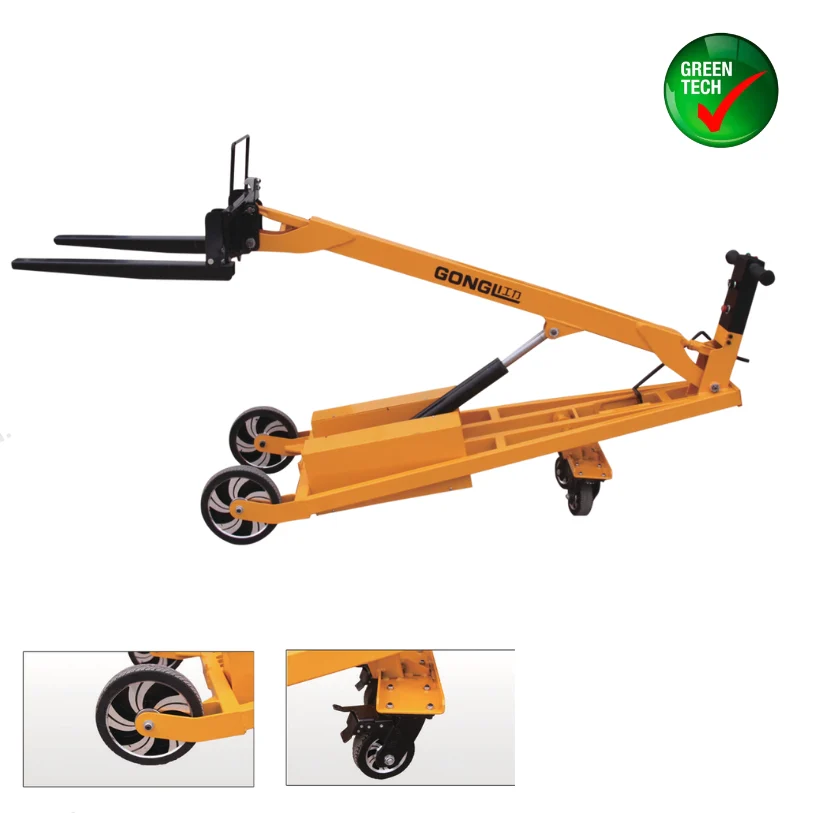

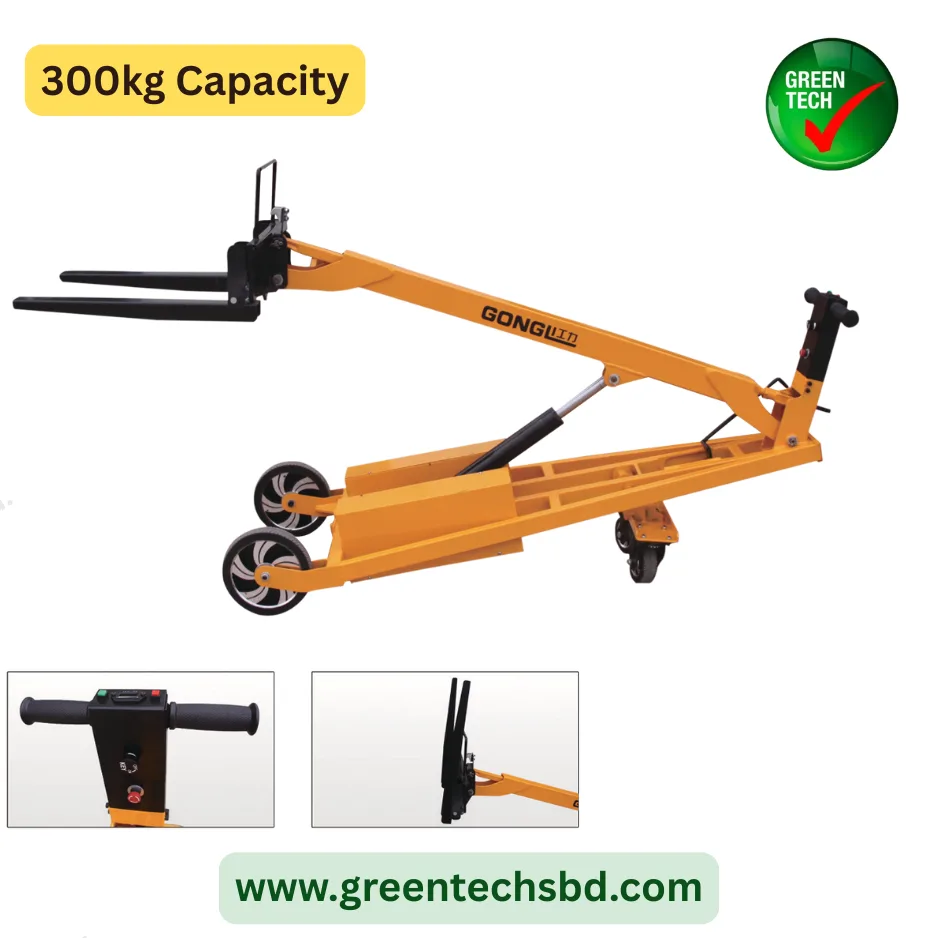

Portable Multi-Functional Crane with Fork | 300kg Capacity | 1550mm Lift

Dual-purpose crane and forklift for versatile material handling:

✔ 300kg Capacity – Industrial-grade performance
✔ Dual Attachment System – Includes fork & hook points
✔ High-Low Range – 65mm to 1.55m working height
✔ Rugged Ø250mm Wheels – Jobsite mobility
✔ Efficient Power – 300+ cycles per charge

Perfect for:
• Warehouse pallet handling
• Construction material lifting
• Factory maintenance work

GTL-0103 Fork-Equipped Multi-Crane – Technical Specifications



Category Specification
Model Number GTL-0103
Load Capacity 300 kg
Lift Height Range 65±2 mm to 1,550 mm
Motor Power 0.8 kW
Battery System 24V/20Ah
Frame Width 680 mm
Wheel Configuration Front: Ø250×40 mm
Rear: Ø125×38 mm
Net Weight 118 kg
Charge Time 5 hours
Cycles Per Charge 300 lifts
Charger 24V/5A
Package Dimensions 1,760×740×360 mm
