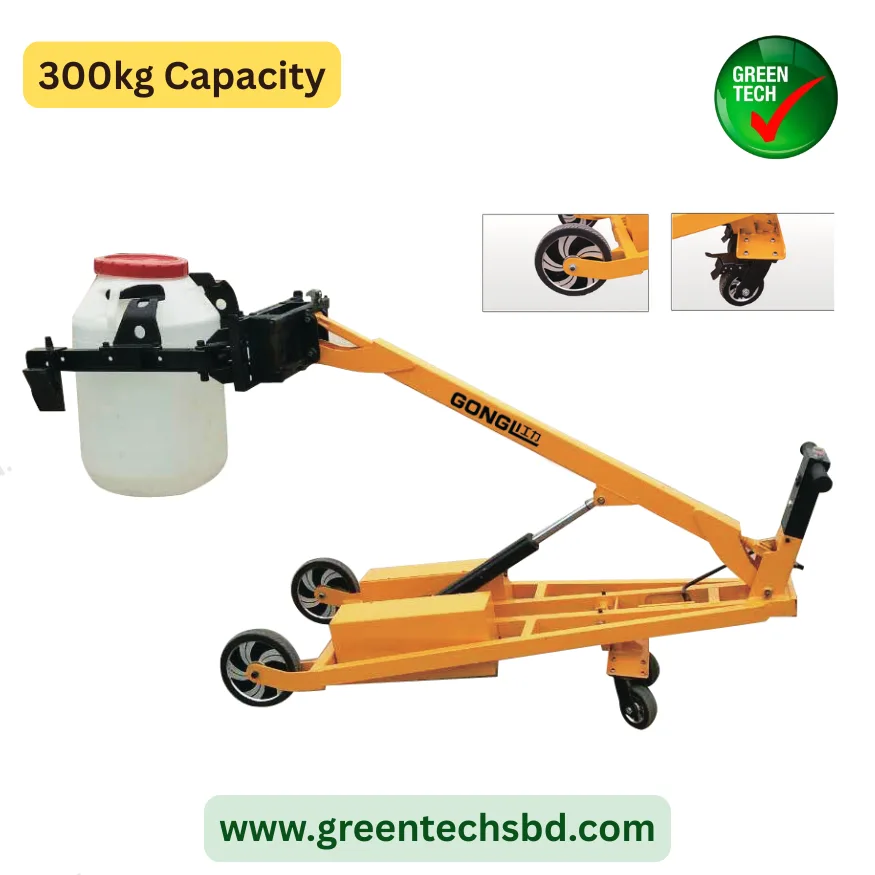

GTL-0107 Honey Bucket Handling Crane – Technical Specifications
| Category | Specification |
|---|---|
| Model Number | GTL-0107 |
| Load Capacity | 300 kg (660 lbs) |
| Lift Height Range | 65±2 mm to 1,260 mm (2.5″ to 49.6″) |
| Motor Power | 0.8 kW (1.07 HP) |
| Battery System | 24V/20Ah Lithium |
| Frame Width | 680 mm (26.8″) |
| Wheel Configuration | Front: Ø250×40 mm (10″×1.6″) Rear: Ø125×38 mm (5″×1.5″) |
| Net Weight | 170 kg (375 lbs) |
| Charge Time | 5 hours |
| Cycles Per Charge | 300+ lifts |
| Charger | 220V/5A |
| Package Dimensions | 1,760×740×360 mm (69″×29″×14″) |
