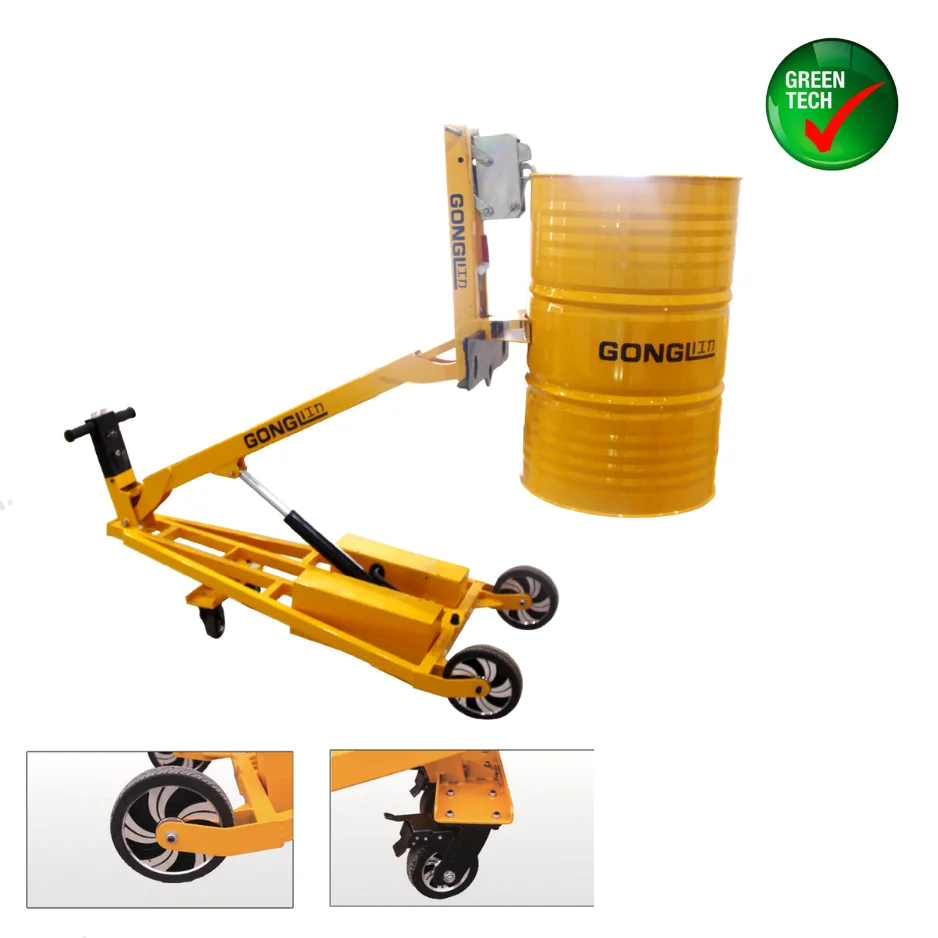

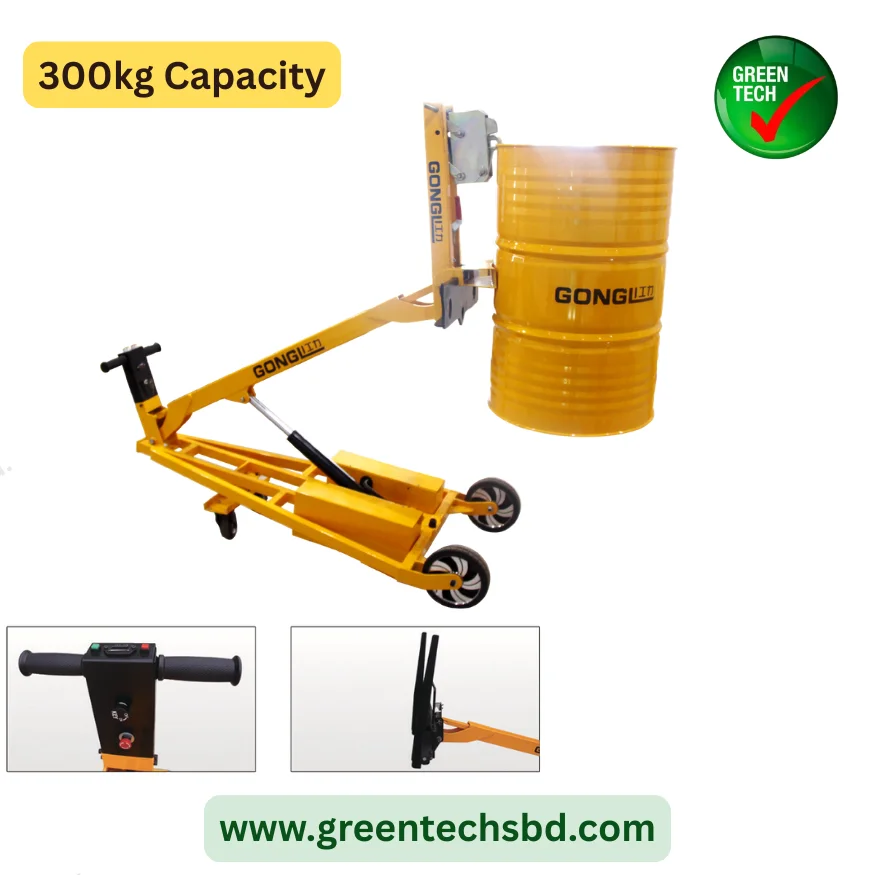

Portable Multi-Functional Crane with Oil Drum Lifter | 300kg Capacity | 1550mm Lift

A heavy-duty, portable lifting solution designed for 55-gallon drums, barrels, and industrial containers with dual-function crane & drum clamp capabilities.

300 kg (660 lbs) Capacity – Safely lifts full oil, chemical, or lubricant drums
Wide Lift Range (65mm–1,550mm) – From ground loading to elevated storage
0.8 kW (1 HP) Motor – Smooth, powerful lifting with 24V/20Ah lithium battery
All-Terrain Wheels10″ front rollers for rough floors, 5″ rear swivel casters for tight turns
Drum Clamp Attachment – Securely grips steel & plastic barrels (210L–230L standard)
300+ Lifts Per Charge – Long-lasting 5-hour fast-charge system

GTL-0104 Portable Multi-Functional Crane with Oil Drum Lifter – Technical Specifications



Category Specification
Model Number GTL-0104
Load Capacity 300 kg (660 lbs)
Lift Height Range 65±2 mm to 1,550 mm (2.5″ to 61″)
Motor Power 0.8 kW (1.07 HP)
Battery System 24V/20Ah Lithium
Frame Width 680 mm (26.8″)
Wheel Configuration Front: Ø250×40 mm (10″×1.6″)
Rear: Ø125×38 mm (5″×1.5″)
Net Weight 130 kg (287 lbs)
Charge Time 5 hours
Cycles Per Charge 300+ lifts
Charger 24V/5A Fast Charger
Package Dimensions 1,760×740×360 mm (69″×29″×14″)
