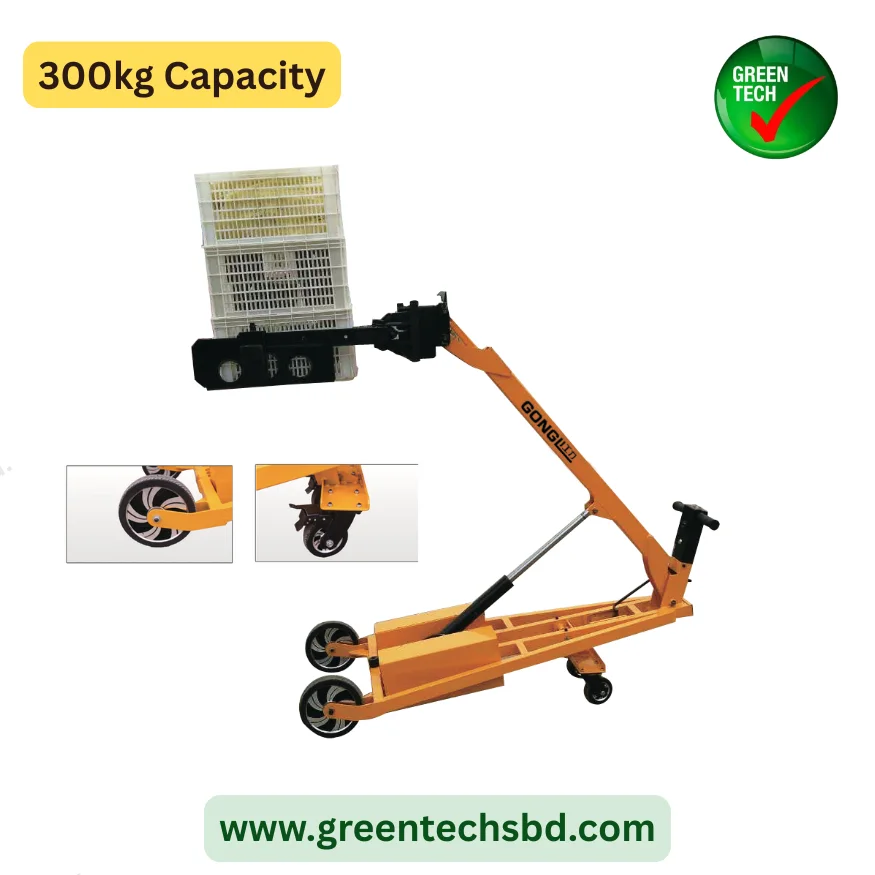

Portable Multi-Functional Crane with Plastic Box Lifter | 300kg Capacity

Specialized heavy-duty handler for large plastic containers and bins:

✔ 300kg Capacity – For stacked plastic totes/boxes
✔ Wide Lift Range – 65mm (floor) to 1.55m (shelf access)
✔ Durable Clamp Design – Non-marking grip surfaces
✔ Powerful 0.8kW Motor – 24V/20Ah battery system
✔ Stable 680mm Base – Prevents load tipping

Perfect for:
• Recycling facilities
• Agricultural produce handling
• Automotive parts logistics

GTL-0106 Plastic Box Handling Crane – Technical Specifications



Category Specification
Model Number GTL-0106
Load Capacity 300 kg
Lift Height Range 65±2 mm to 1,550 mm
Motor Power 0.8 kW
Battery System 24V/20Ah
Frame Width 680 mm
Wheel Configuration Front: Ø250×40 mm
Rear: Ø125×38 mm
Net Weight 171 kg
Charge Time 5 hours
Cycles Per Charge 300 lifts
Charger 220V/5A
Package Dimensions 1,760×740×360 mm
