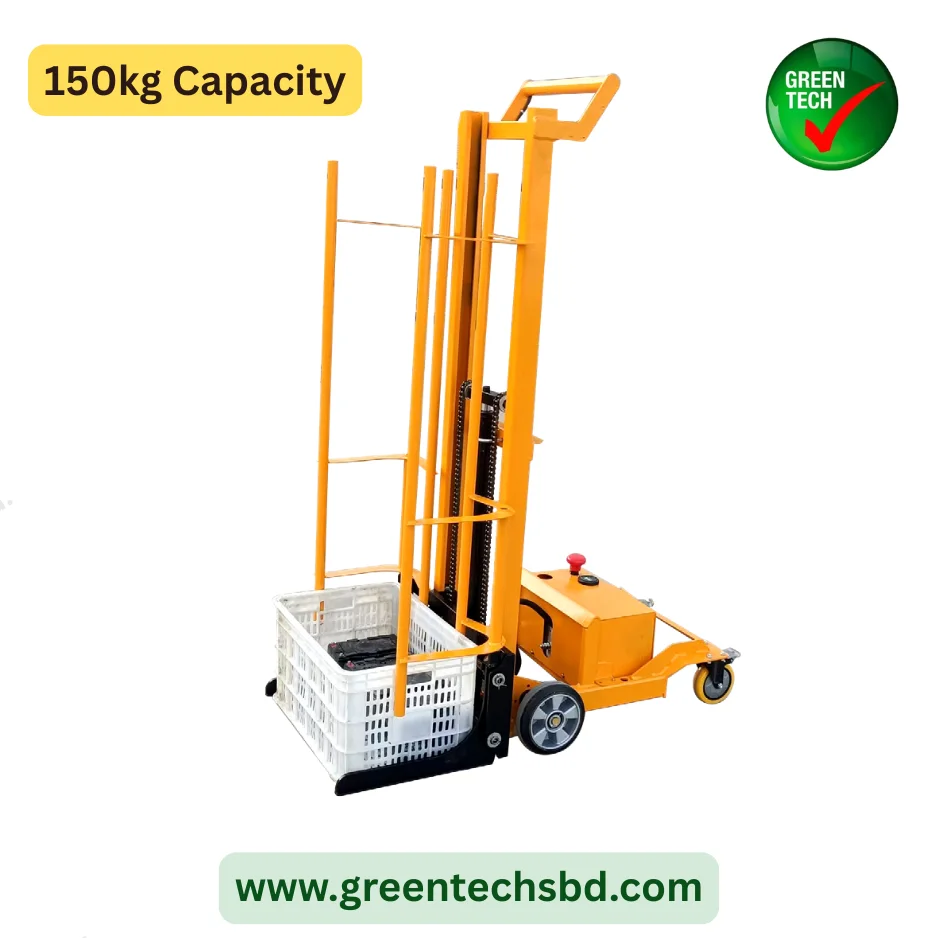

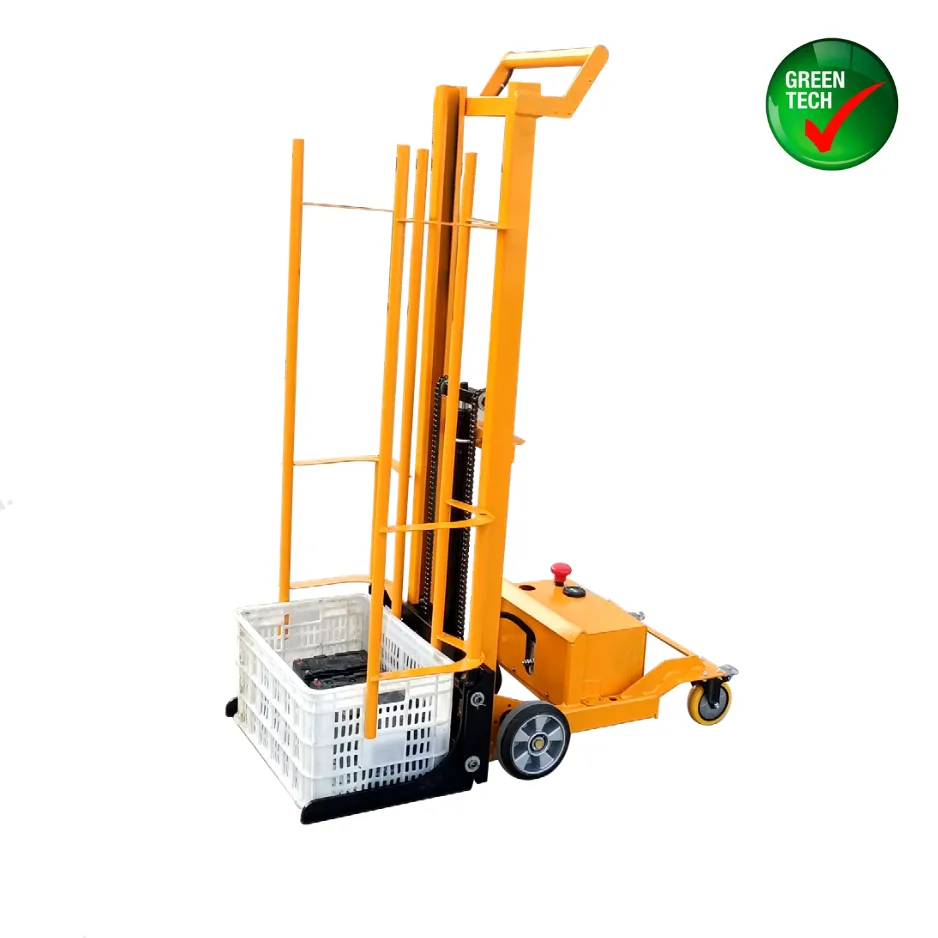

Turnover Box Carrier | 150kg Capacity | 1500mm Lift Height

Specialized carrier for automated production line box handling:

150kg Capacity – For standard turnover containers
High 1.5m Lift – Easy transfer to elevated conveyors
Compact 630mm Width – Fits narrow production aisles
Tight 620mm Turning – Excellent maneuverability
0.6kW Lift Motor – Smooth electric operation

Perfect for:
• Automotive parts lines
• Electronics assembly
• Lean manufacturing cells

GTL-0073 Turnover Box Carrier – Technical Specifications

Category Specification
Model Number GTL-0073
Load Capacity 150 kg
Box Compatibility 450×360×300 mm (L×W×H)
Max Lift Height 1,500 mm
Body Width 630 mm
Turning Radius 620 mm
Wheel Configuration Front: Ø160×50 mm
Rear: Ø125×38 mm
Battery System 24V/13Ah
Lift Motor 0.6 kW
Net Weight 85 kg
